Description
The TomatoCube iCE40LP384 HollowClock IDE is a lightweight, cross-platform desktop application for writing, managing, and compiling Verilog HDL projects targeting the TomatoCube iCE40LP384 HollowClock FPGA Development Board.
Built around the APIO toolchain, a Python-based command-line tool that simplifies FPGA development by integrating the open-source iCE40 toolchain, allowing users to compile and prepare their Verilog designs for deployment to the FPGA board.
——————————————————————
Technical Information
——————————————————————
The TomatoCube iCE40LP384 HollowClock Development Board is powered by the Lattice iCE40LP384 FPGA, a compact, low-power device featuring 384 Look-Up Tables (LUTs).
The board is designed as an accessible platform for learning digital logic, FPGA development, and Verilog HDL (Hardware Description Language) – a language widely used in the semiconductor industry to design and describe digital circuits.

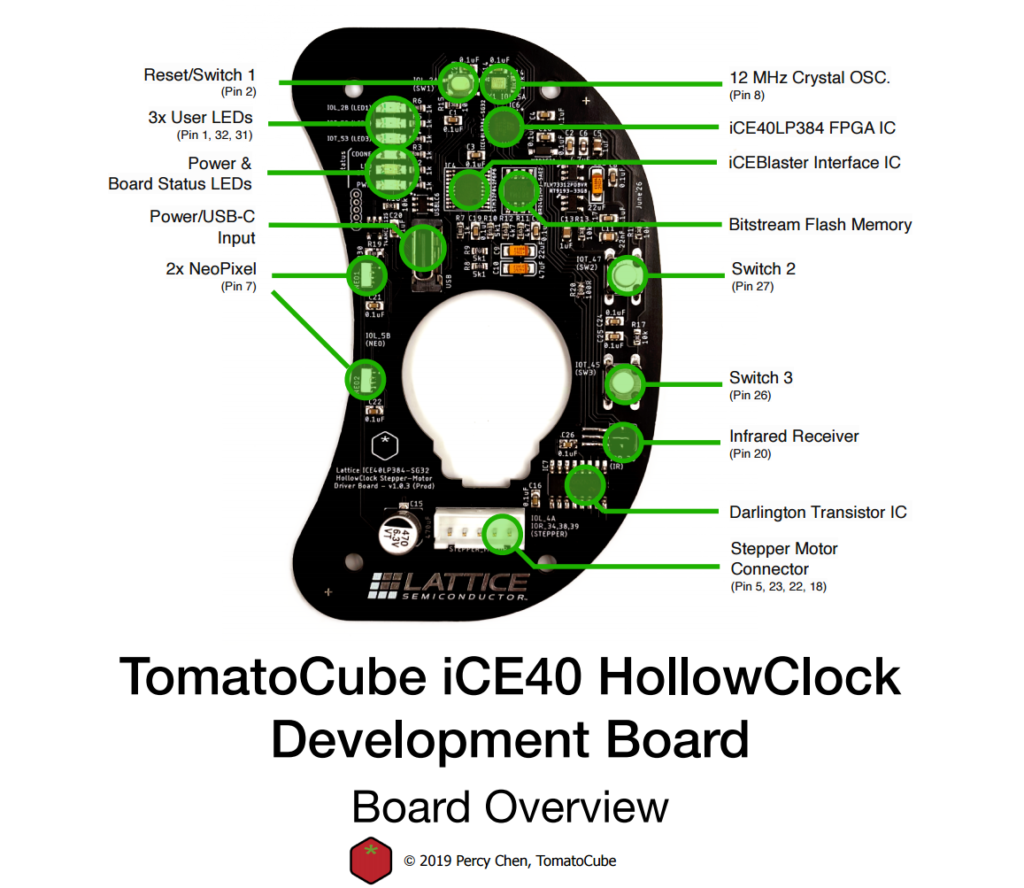

The diagrams below illustrate the top view of the HollowClock Development Board PCB, with callouts identifying the locations of the various onboard components and peripherals.

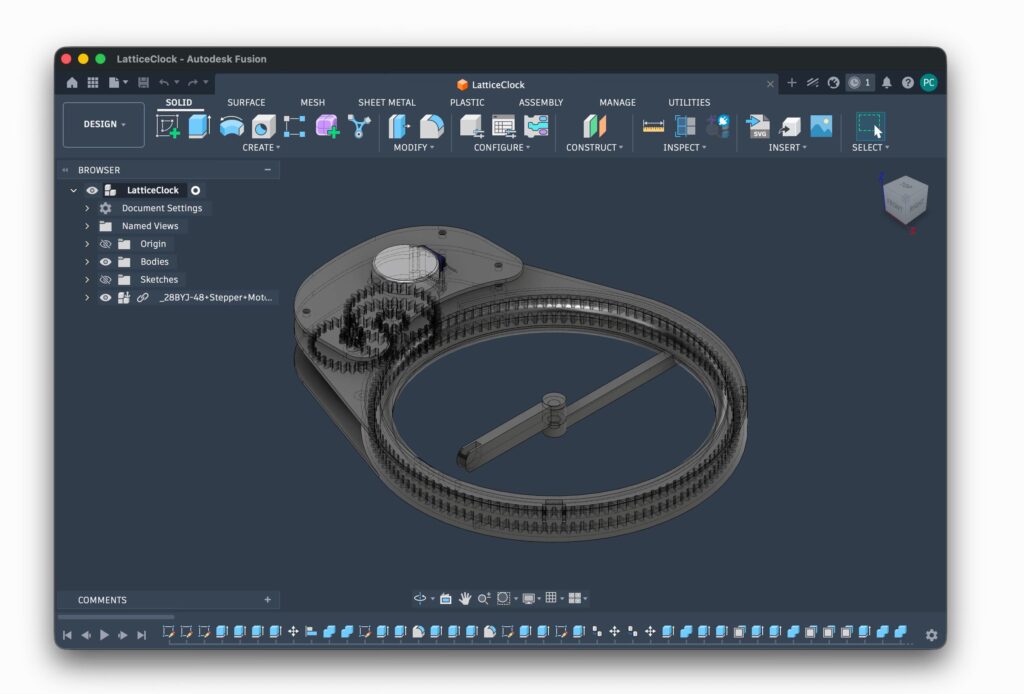

The diagram below shows the 3D CAD design of the Hollow Clock mechanism:
——————————————————————
What’s Included in the Kit
——————————————————————
The TomatoCube iCE40LP384 HollowClock comes as a complete project kit, containing all the electronic components, mechanical parts, 3D-printed parts, and tools needed to assemble a fully functional HollowClock.
Kit Contents:
- 1 × Complete set of 3D-printed clock body parts and gears
- 1 × Complete set of assembly hardware (magnets, screws, standoffs, acrylic backing plate, etc.)
- 1 × Stepper motor
- 1 × Infrared (IR) remote control for operating the clock
- 1 × Lattice iCE40LP384 HollowClock Development Board
- 1 × USB Type-C cable
- 1 × Phillips screwdriver with hex driver attachment
- 1 × Tube of lubricating grease for the clock gears
- 1 × HollowClock Assembly Guide (step-by-step assembly instructions)
- 1 × FPGA Development Quick Start Guide (Verilog HDL development with APIO, and FPGA programming)
The kit provides a hands-on introduction to FPGA development, combining digital logic programming with mechanical assembly to create a functional, programmable HollowClock.
